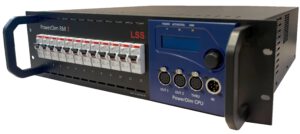

PowerDim RM

The LSS PowerDim RM is a compact 19‘‘/3U phase control dimmer for installation in rack systems and flight cases. The dimmer has 12 power circuits á 3 kVA with RCBO individual circuit protection and shutdown even if there is no neutral conductor. The dimmer fulfills DIN EN 61009-1 (VDE 0664-20) for the protection of people against indirect contact. Each circuit has a Dim / NonDim switch, a bypass switch at 100% load, an adjustable 8-bit / 16-bit control, and 13 dimmer curves. For the connection of lights with low loads (e.g. fluorescent tubes, LEDs, etc.), the device is equipped with a switchable electronic base load. The use of high-quality chokes significantly prevents lamp clinking and electrical interference. Each circuit is current monitored and can be prioritized in the control.

Datasheet

PowerDim WM

The LSS PowerDim WM is a compact dimmer for wall mounting with either 24x3kVA or 12x5kVA circuits. For each circuit an operating modus Dim or a NonDim can be defined and each circuit can be switched via bistable relays. Both operating modes are designed for resistive, inductive and the NonDim additionally for capacitive loads. Each circuit is individually protected with an MCB. Optionally the circuit breakers can be extended by RCD (4x 6 circuits) or replaced by single RCBO.

Datasheet

NonDim Duct

The LSS NonDim Duct is a remotely switchable power distributor in a duct design. It is developed for the decentralized power supply of lighting systems with 230 V / 16 A. Up to twelve load circuits can be supplied and switched simultaneously. It is supplied with 400 V / 32 A. Other specifications are possible on request. An LSS PowerSwitch 2 12x20A, a high-performance switching actuator with bistable, polarized relays, is used for the switching processes. Each load circuit is individually fused to 16 A and is monitored for current. The current monitoring values can be displayed on lighting consoles or a stage manager’s desks.

Data sheet

DMX Schalt-Schuko 2

DMX switchable Schuko plug with RDM

The LSS DMX Schalt-Schuko 2 is a built-in Schuko plug that can be switched on and off via DMX. A bistable relay is used for this, which only requires power for switching. A holding current is not necessary. The relay has a switching capacity of a maximum of 11.5 kVA (230 V / 50 A). It is oversized so that it can also switch capacitive or halogen loads with high inrush currents without any problems.

Datasheet

DMX Schalt-Schuko 2 wireless

Wireless DMX switchable Schuko plug with optional RDM support

The LSS DMX Schalt-Schuko 2 wireless is a built-in Schuko plug that can be switched on and off via W-DMX. It is equipped with a bistable relay, which only requires power for switching. A holding current is not necessary. The relay has a switching capacity of a maximum of 11.5 kVA (230 V / 50 A). It is oversized so that it can also switch capacitive or halogen loads with high inrush currents without any problems.

The LSS DMX Schalt-Schuko 2 wireless is equipped with a LumenRadio CRMX Nova system. It supports all transmitters from this product family. The device is optionally available as a pure DMX or DMX/RDM device. The DMX device can only be parameterized in the device menu. In the DMX/RDM variant, parameterization and feedback via RDM are also possible. A DMX universe with 512 channels is transmitted in both device variants. All devices have temperature measurement and monitoring. Operating status and error messages are also displayed via LEDs on the device. These LEDs can be switched off for use in the stage area.

Datasheet

Stage Manager’s Desk DNPmobile

LSS DNPmobile is a mobile stage manager’s desk. The user interface is designed for the Microsoft Surface 6 Pro tablet PC with a 12.3-inch PixelSense™ display. It can either be integrated into the network via WLAN or via a wired USB C-to-Ethernet adapter.

Data sheet

LightControl eco

The LSS LightControl eco is a control system for small systems for architectural and room illumination. It can directly control light fixtures, lamps and other devices within a DMX universe via DMX or sACN. Cues can be stored in up to ten storages and the fade-in and fade-out times can be set individually. The cues can then be recalled directly from the touch screen or via external push-buttons, can be faded in or out alone or in one another, or they can simply be switched on and off. The programming of the storages of the LSS LightControl eco is simple and user-friendly. The control screen and presets can be customized. Existing cues can be directly read in by light-ing control consoles and storage devices and processed on the devices. All settings are made directly on the device and are intuitively designed.

Data sheet

KBL-P

The LSS KBL-P is a white and / or blue light luminaire for mounting in U-profiles, which are used in theaters to fix headlights or in other constructions. The LED light can be used as orientation or path lighting on galleries, towers or bridges in the entire stage area. The profile light is supplied in a powder-coated 1.5 mm sheet steel housing.

Data sheet
